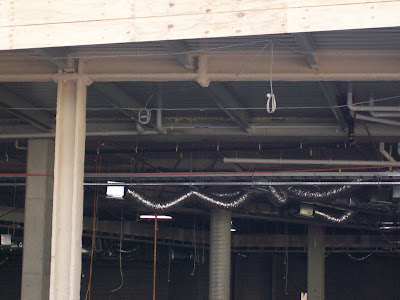

These photos are of the new extension to the Westfield plaza in Geelong's CBD.
The steel and concrete constructed building spans across the road for a walkway.
The steel and concrete constructed building spans across the road for a walkway.
Wednesday 30 April 2008
Deakin Waterfront
The new addition to deakin waterfront is the renovation of the old building that has been sitting there for years. The first problem that arose for those involved was the fact that the floor levels were not big enough for this type of building and therefore each level had to be raised 600mm.
The original building is made of brick veneer and is supported by steel columns and beams, with timber flooring. The new addition is made of concrete construction and is only a small section to the east.
The beautiful views from the upper level.
The original building is made of brick veneer and is supported by steel columns and beams, with timber flooring. The new addition is made of concrete construction and is only a small section to the east.
The beautiful views from the upper level.
This view is of the void at the upper level, they have just started putting glass in at this level where the offices will be.
The enormous concrete lintel in the back corner is visible here that had to be added to support the new structure.
In the original part of the building you can see the steel columns and beams used for support.
Here you can see the brickwork that was removed in order to add windows and to help allow sun into the windows of the existing deakin building.
This image is showing the concrete columns and beams used in the extension.
Wednesday 23 April 2008
Soon to be Target, Ocean Grove
Not really much at the moment, just a hole in the ground. Because it's such a small site for a Target to be located they have to go below ground for car parking. The concrete construction building had the first part of the floor slab poured last week and hopefully if i keep an eye on it there will be more interesting things to come throughout the semester.
You can see the heavy reinforcement needed for this underground construction.
Again, here you can see the reinforcement sticking out of the slab, because of the pressure the earth surrounding will force on it.
